SDLG L955F L956F STEERING PUMP ASSEMBLY 转向泵总成

1 4011001300 螺栓GB16674.1-M10*30f1Znyc-8.8-480 Screw Y 8

2 4041000043 分体法兰LGB117-310490 Flange half Y 1

3 4030000026 0形圈GB3452.1-32.5*3.55G O-ring Y 1

4 29190015131 转向泵出油胶管 Hose assembly Y

5 29190015141 出油钢管 Pipe Y 1

6 4030000029 0形圈GB3452.1-37.5*3.55G O-ring Y 2

7 4011001298 螺栓GB16674.1-M10*55f1Znyc-8.8-480 Screw Y 4

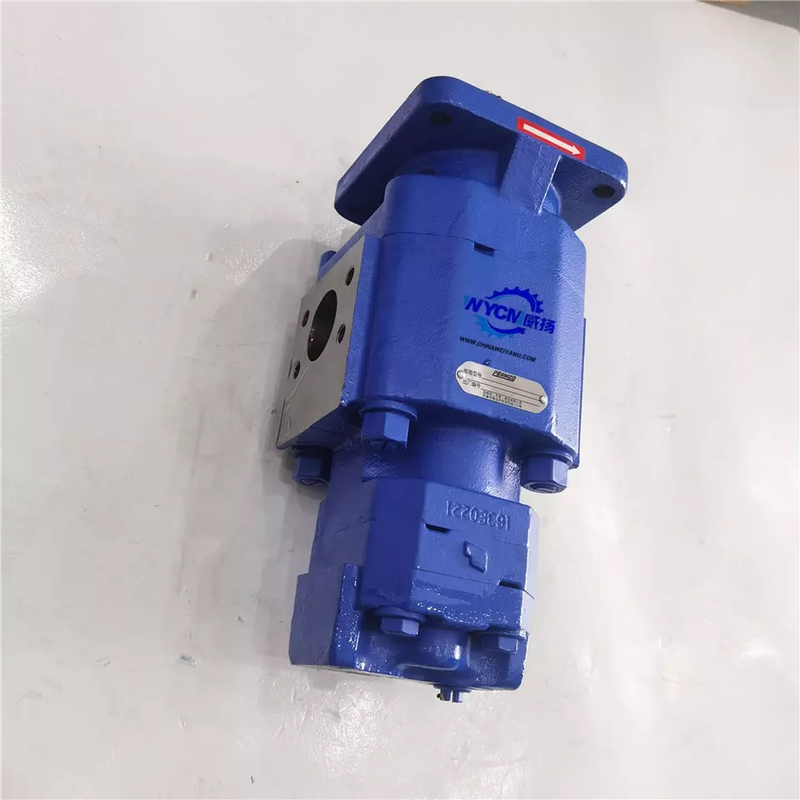

8 4120008462 双联泵100/10 Gearpump Y 1

9 29110000043 泵用密封垫 Gasket Y 1

10 4012000100 螺井GB898-M12*35f1Znvc-10.9-480 Stud Y 4

11 4013000397 螺母GB6170-M12f1Znyc-10-480 Nut Y 4

12 4015000428 华图GB97.1-12f1Znvc-300HV-480 Washer Y 4

13 29190014751 转向泵吸油胶管 Y Hose 1

14 4017000013 喉箍JE8870--90 Clamp Y 4

15 29190014742 转向泵吸油钢管 Pipe Y 1

16 4030000482 0形图GB3452.1-50.0*3.55G O-ring Y 1

17 4011001530 螺栓GB16674.1-M12*t0f1Znvc-8.8-480 Screw Y 4

18 29110011921 直接到M16-M16 Nipple Y 1

19 4041000780 0形圈LGB168-11324 O-ring 1

20 4041002251 软管LGB125-004088 Hose assembly Y 1

21 4041001023 组合接头LGB143-01608 Nipple Y 1

22 4041000027 分体法兰LGB117-312551 Flange half 1
