SDLG LG958L STEERING PUMP SYSTEM 转向泵系统

1 29110008361 工作泵吸油胶管 OIL INLET PIPE OF WORKING PUMP Y 1

2 4017000013 喉箍JB8870-d90 CLAMP JB8870-d90 N 4

3 4015000168 垫圈GB97.1-12EpZn-300HV WASHER GB97.1-12EpZn-300HV N 4

4 4013000011 螺母GB6170-M12EpZn-8 NUT GB6170-M12 EpZn-8 N 4

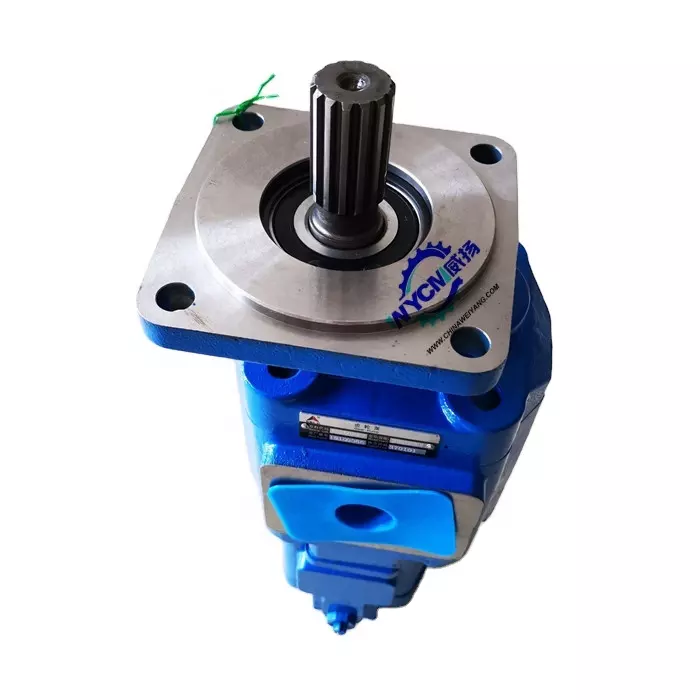

5 4120001969 双联泵JHP2100/Gj0010C-XF SPLIT FLOW PUMP JHP2100/Gj0010C-XF Y 1

6 29110007541 泵用密封垫 SEAL SPACER OF PUMP Y 1

7 4041000027 分体法兰LGB117-312551 FLANGE LGB117312551 Y 1

8 4011000475 螺栓GB16674-M10*30EpZn-8.8 BOLT GB16674-M10*30EpZn-8.8 N 12

9 4030000029 O形圈GB3452.1-37.5*3.55G O-RING GB3452.1-37.5*3.55G Y 2

10 29200005051 优先阀进油钢管 INLET TUBE OFPRIORITY VALVE Y 1

11 4041000043 分体法兰LGB117-310490 FLANGE LGB117310490 Y 1

12 4030000026 O形圈GB3452.1-32.5*3.55G O-RING GB3452.1-32.5*3.55G Y 1

13 29190009021 转向泵出油胶管 OIL OUTLET PIPE FROM PUMP Y 1

14 4041000638 软管LGB125-005128 TUBE LGB125-005128 Y 1

15 29190007921 直通接头体 STRAIGHT JIONT Y 2

16 4030000057 垫圈JB1002-14-T2 WASHER JB1002-14-T2 Y 2

17 4041001143 软管LGB165-005140 TUBE LGB165-005140 Y 1

18 4041000056 分体法兰LGB117-312550 FLANGE LGB117-312550 Y 1
